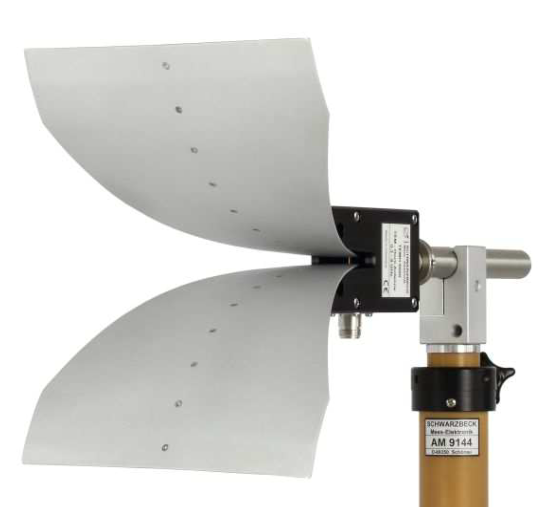

TEMH 6000

TEMH 6000

線性極化寬頻 TEM 號角天線（鋁製），適用於接收與發射應用，特別適合於近場輻射場測試與超寬頻（UWB）測量。典型應用包括依據 IEC 61000-4-39 標準進行的抗擾度測試。

詳細說明

規格

Nominal Frequency Range 380 MHz … 6 GHz
Usable Frequency Range 300 MHz … 8 GHz
Nominal Impedance 50 Ω
Standing Wave Ratio (SWR, typical) < 2
Unbalance < 1.0 dB, typ. < 0.5 dB
Cross Polarisation Rejection typ. > 20 dB
Uniform Area Dimension (10 cm) 0 … -4 dB, x ~ 30 cm, y ~ 20 cm
Max. Input Power 300 W
Isotropic Gain 2 … 10 dBi
Antenna Factor 20 … 38 dB/m
3 dB Half-Power Beamwidth (E-Plane) typ. 30° … 68°
3 dB Half-Power Beamwidth (H-Plane) typ. 40° … 61°
Connector N-Connector female
Mount 22 mm Tube, Indexing Ring
Dimensions (W × L × H) 260 × 300 (500) × 210 mm
Weight 1.4 kg
Optional Accessories Spacer 100
