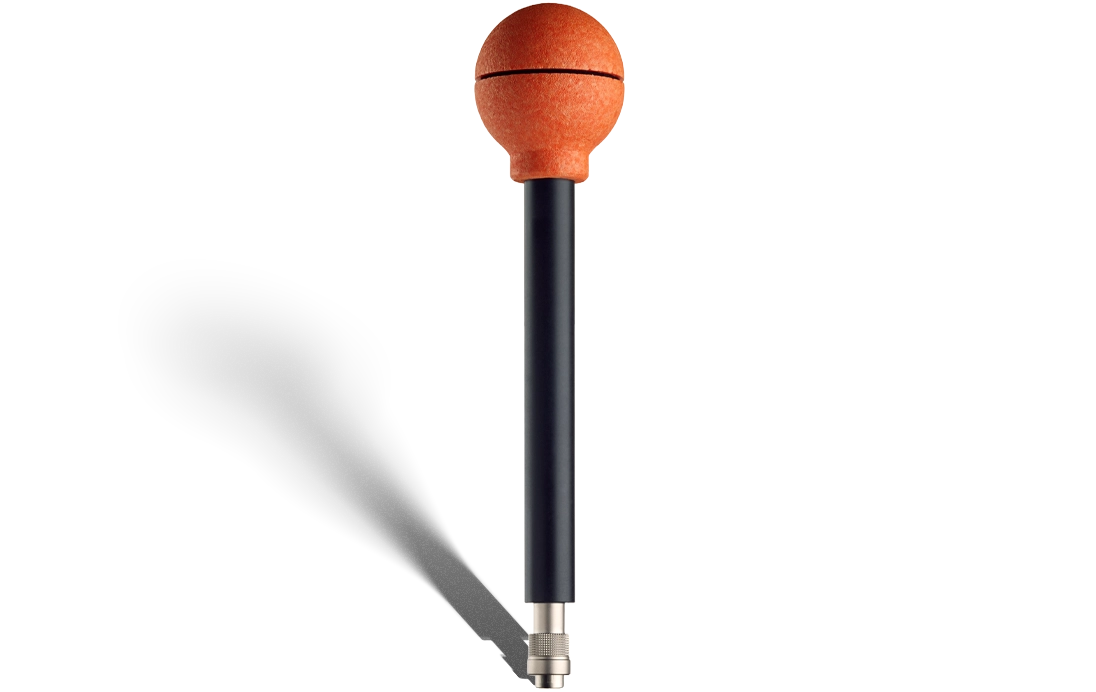

WPF8

WPF8

Field Probe 100 kHz – 8 GHz

功能特點 (Features)：
高靈敏度，自 0.2 V/m 起 (High sensitivity from 0.2 V/m)
等向性與真實均方根量測 (Isotropic and RMS measurement)
在 50/60 Hz 下具有優異的衰減效果 (Excellent attenuation at 50/60 Hz)
符合國際標準 (Meets international standards)

主要應用 (Main Applications)：
電信 (Telecommunications)
無線電信網路 (Wireless telecom networks)：IEC 62232, EN 50400, EN 50401, EN 50492
廣播 (Broadcast)：IEC 6251237, EN 50475, EN 50476, EN 50496, EN 50554
射頻識別/電子防盜 (RFID/EAS)：EN 50364, EN 50357, IEC/EN 62369-1
感應加熱 (高頻) (Induction heating, HF)：EN 50519
塑膠焊接 (Plastic welding)
半導體製造 (Semiconductor production)
醫療 (Medical)：IEC 60601
工作場所評估 (Workplace assessment)：EN 50499
攜帶主動植入式醫療裝置工作者之評估 (Assessment of workers bearing AIMDs)：EN 50527-1
人體暴露評估 (Human exposure assessment)：EN 50413
研究/實驗室 (Research/Labs)
微波乾燥 (Microwave drying)

詳細說明

　 WPF8 WPF8-HP
High Power version
Frequency range 100 kHz – 8 GHz
Sensor type Isotropic
RMS diode technology
Type of frequency response Flat
Measurement range  0.2 – 130 V/m (CW)
0.2 – 20 V/m (RMS)		 0.2 – 1000 V/m (CW)
0.2 – 20 V/m (RMS)
Dynamic range 52 dB 70 dB
Sensitivity 0.02 V/m
Resolution 0.02 V/m (until 7.5 V/m)
0.1 V/m (from 7.5 V/m to 130 V/m)
Frequency response (*) ±1.5 dB (250 kHz – 6 GHz)
±0.5 dB / -2.5 dB (6.5 GHz – 8 GHz)
-3 dB (100 kHz)
Linearity ±0.5 dB (0.5 V/m – 100 V/m)
Isotropic deviation  ±1 dB (@ 2 GHz)
Calibration ISO 17025 Accredited Calibration (ILAC)
Calibration period 24 months (recommended)
Temperature range - 20 ºC to 50 ºC
Temperature response + 0.1 / - 1 dB (related to 20 ºC)
Dimensions 28,4 cm X 6 cm Ø
Weight 95 g
Attenuation at 50/60 Hz >80 dB
