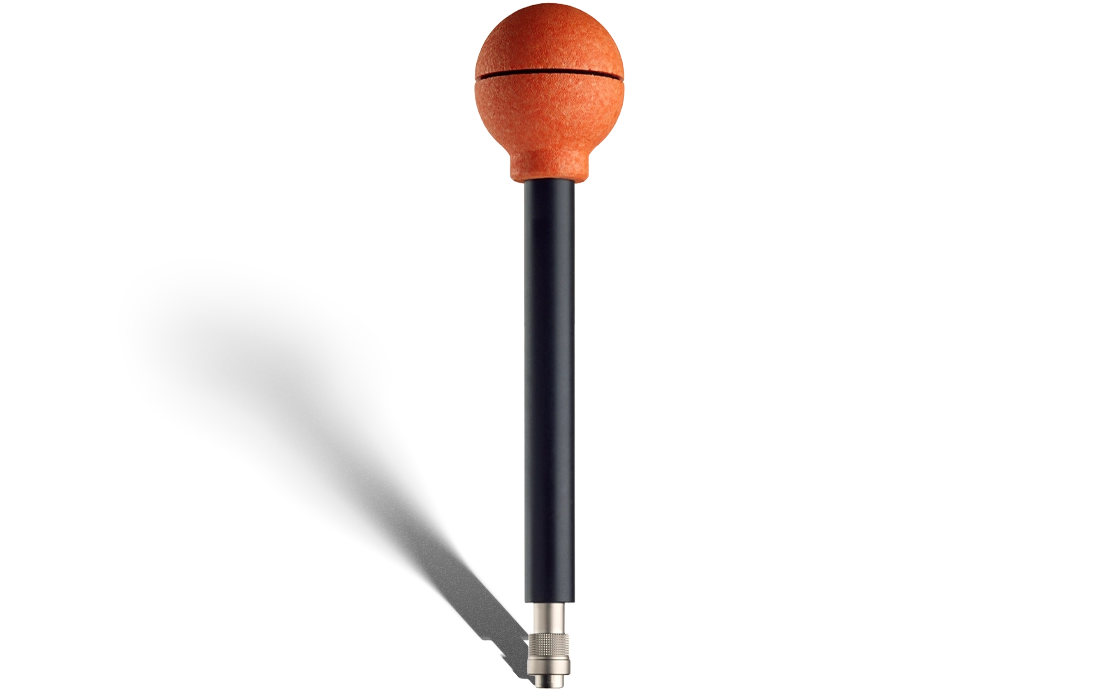

WPF90

WPF90

Field Probe 30 MHz – 90 GHz

功能特點 (Features)：
電場測量 (Electric field measurement)
各向同性與真實均方根測量 (Isotropic & True RMS measurement)
在 50/60 Hz 頻率下具備優異的衰減性能 (Excellent attenuation at 50/60 Hz)
依照國際標準進行測量 (Measurements in accordance with International Standards)

主要應用 (Main Applications)：
電信 (Telecommunications)
無線電信網路 (Wireless telecom networks)： IEC 62232, EN 50400, EN 50401
廣播 (Broadcast)： IEC 6251237, EN 50475, EN 50476, EN 50496, EN 50554
衛星安裝 (Satellite installations)
工作場所評估 (Workplace assessment)： EN 50499
攜帶主動植入式醫療裝置工作者之評估 (Assessment of workers bearing AIMDs)： EN 50527-1
人體暴露評估 (Human exposure assessment)： EN 50413
研究/實驗室 (Research/Labs)
微波乾燥 (Microwave drying)
洩漏檢測 (Detection of leaks)
雷達 (Radar)
國防 (高頻) [Defense (HF)]

詳細說明

Frequency range 30 MHz - 90 GHz
Sensor type Isotropic
RMS diode technology
Type of frequency response Flat
Measurement range 1.2 – 1000 V/m (CW)
1.2 – 70 V/m (RMS)
Dynamic range 58 dB
Sensitivity 1.2 V/m
Frequency response (*) ± 3 dB (30 MHz – 50 GHz)
± 1/-6 dB (50 GHz – 60 GHz)
0/-10 dB (60 GHz – 90 GHz)
Linearity ± 1 dB (2 – 250 V/m)
Isotropic deviation ± 1 dB (< 12 GHz)
± 2 dB (12 GHz to 60 GHz)
± 3.5 dB (60 GHz to 90 GHz)
Damage level (CW) 1200 V/m
Calibration ISO 17025 Accredited Calibration (ILAC)
Calibration period 24 months (recommended)
Temperature range - 20 ºC to 50 ºC
Temperature response + 0.1 / - 1 dB (related to 20 ºC)
Dimensions 28.4 cm x 6 cm Ø
Weight 95 g
Attenuation at 50/60 Hz > 40 dB
