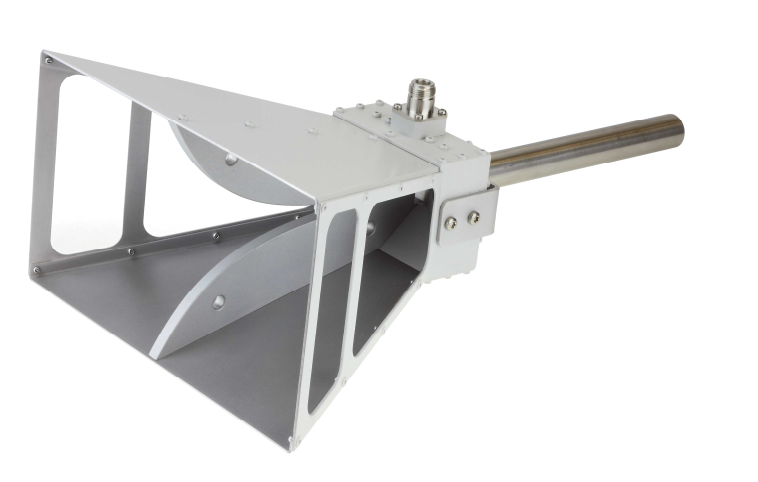

BBHA 9120 D
詳細說明
規格
| Nominal Frequency Range | 1 GHz ... 18 GHz |
| Usable Frequency Range | 800 MHz ... 18 GHz |
| Isotropic Gain | 5 ... 17 dBi |
| Antenna Factor | 25 ... 44 dB/m |
| Nominal Impedance | 50 Ω |
| Standing Wave Ratio SWR typical | ≈ 1.5 |
| Front to Back Ratio | > 25 dB (f > 1.3 GHz) |
| Cross Polarisation | > 25 dB (1 GHz ... 18 GHz) |
| 3 dB Beamwidth typ. (E-Plane) | 90° - 8° |
| 3 dB Beamwidth typ. (H-Plane) | 60° - 7° |
| Connector | N-Connector female |
| Mount | 22 mm Tube, Indexing Ring |
| Dimensions (W × L × T) | 250 × 195 (408) × 142 mm |
| Weight | 1.4 kg |
